Description

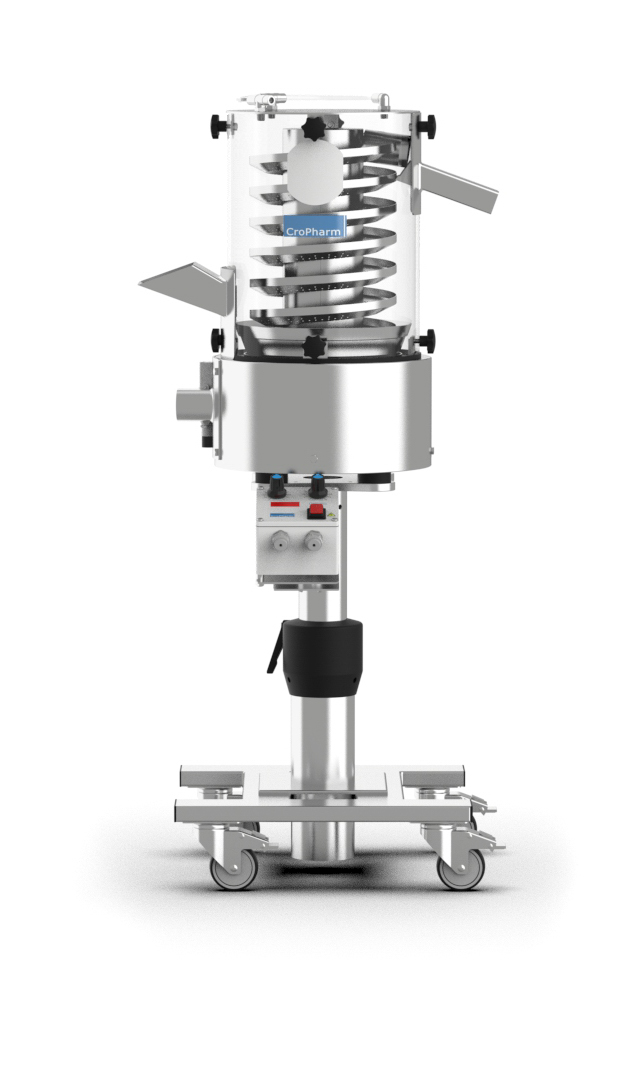

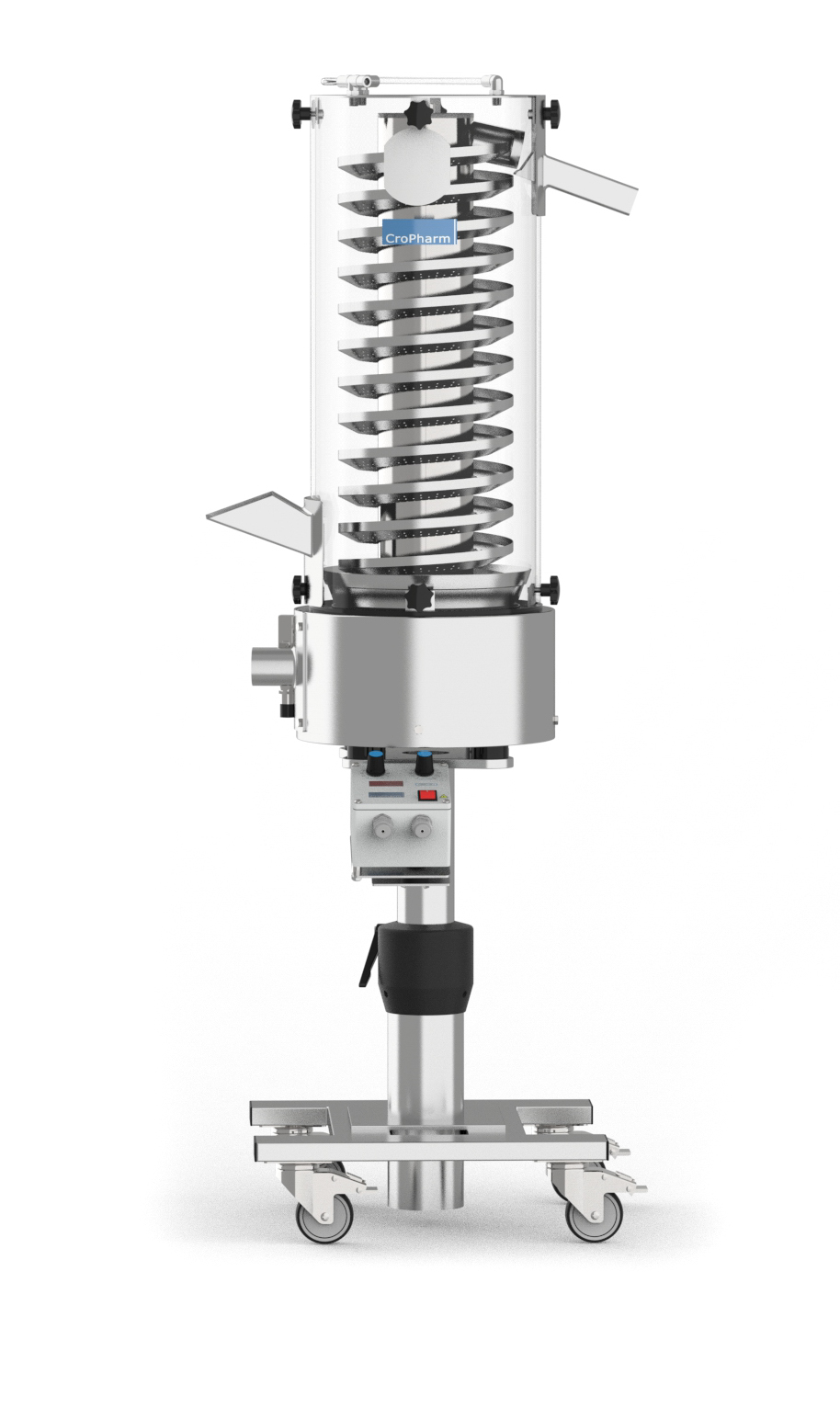

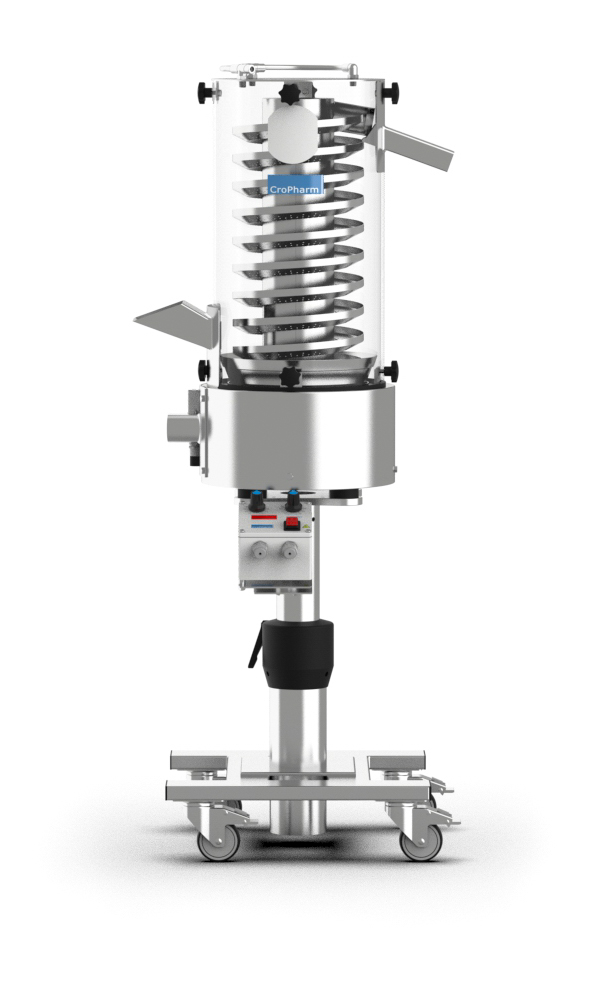

The tablet deduster VDS-150 series is an upward conveying and dedusting system designed to easily connect to the side of tableting machines. The dedusting process utilizes vibration, compressed air, and vacuum to remove dust from tablets. The vibration of the stainless steel tower forces the tablets up the spiral tracks while vibrating off dust. The dust is then blown by compressed air through a central dust collector. Vibration is controlled and adjusted by a Digital Vibration Controller. The controller is also easily removable for cleaning purposes. All surfaces that come in contact with products are made of stainless steel type 316L. No plastic is used throughout the dedusting path due to its poor conductive properties. This design factor ensures that dedusting efficiency is maximized. VDS-150 series dedusters are fully modular systems allowing you to change the conveying height without needing to change the drive unit. Options for integration with metal detectors on the same stand are available. For more information please watch the video below and download the brochure.

Key Features

  • Output up to 600,000 tablets/hour (depending on shape & size)
  • Amplitude and frequency digital vibration controller
  • Vibration free housing
  • Adjustable height
  • 3 possible outlet position. 90, 180, and 270 degrees with respect to inlet.
  • Small footprint (18 in. x 18 in.)
  • Low noise (<70 dB)
  • Designed and Manufactured in USA.

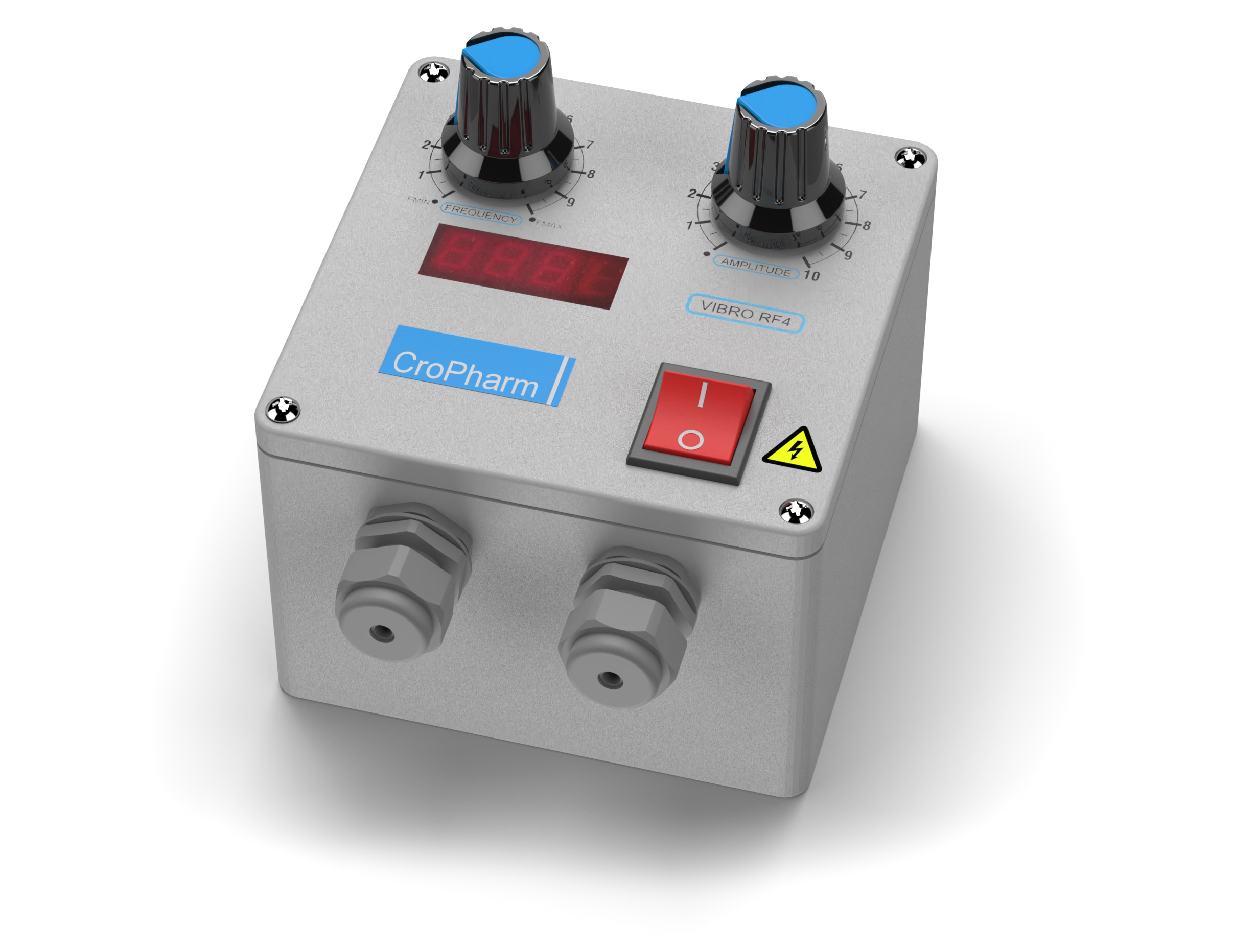

Digital Vibration Controller
