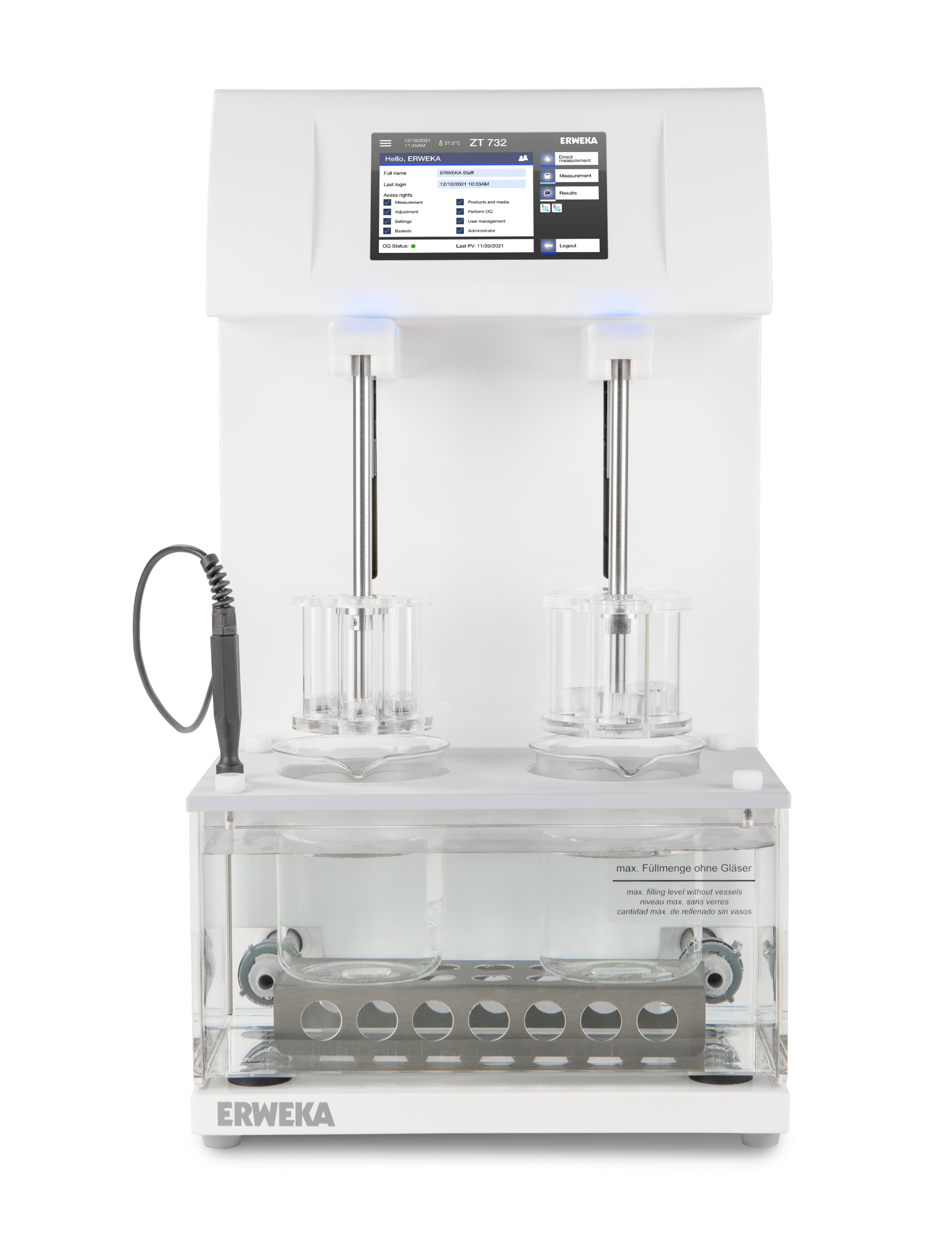

ZT 730
Cable‑free AirBasket system with automatic time determination and 7" touch control.

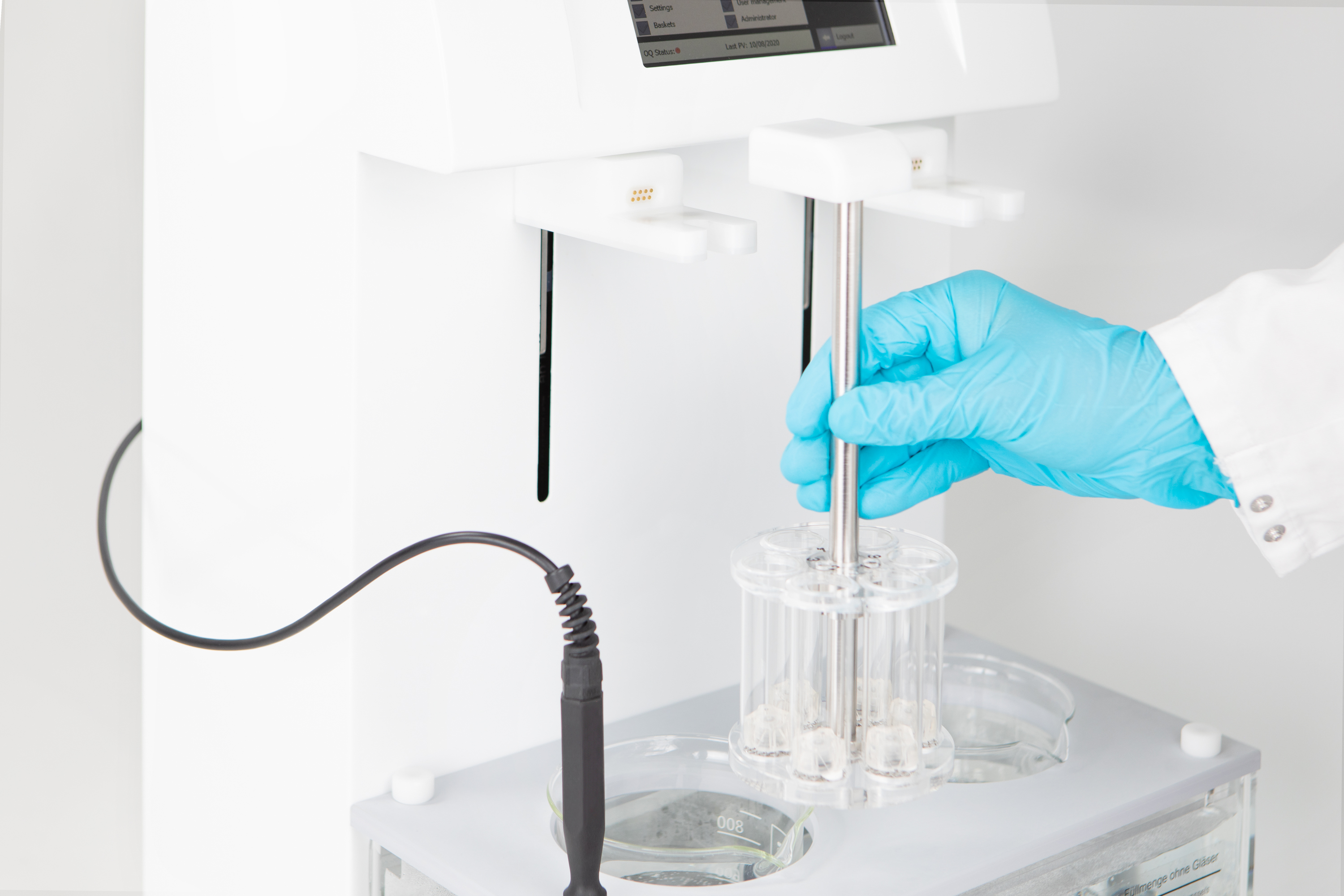

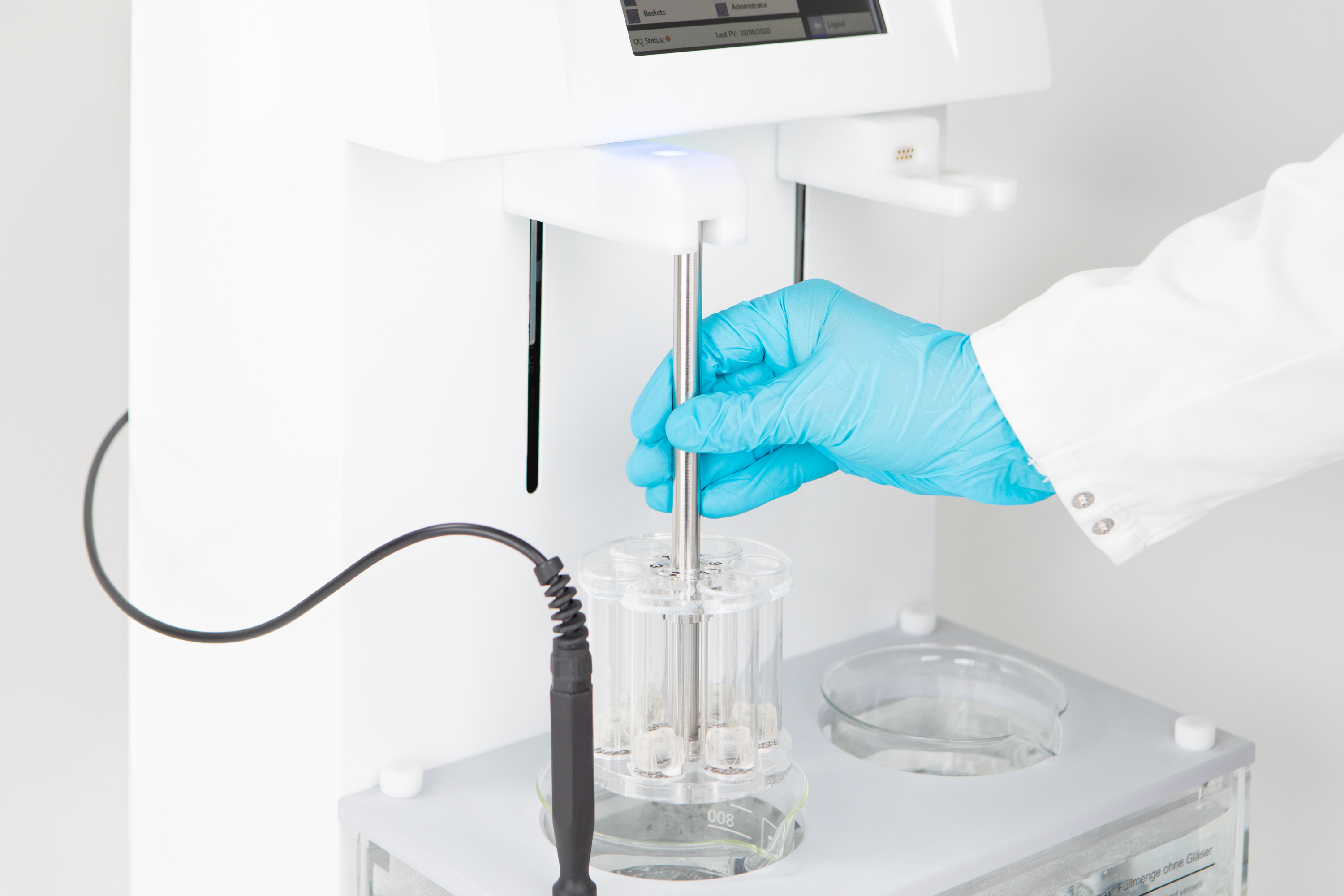

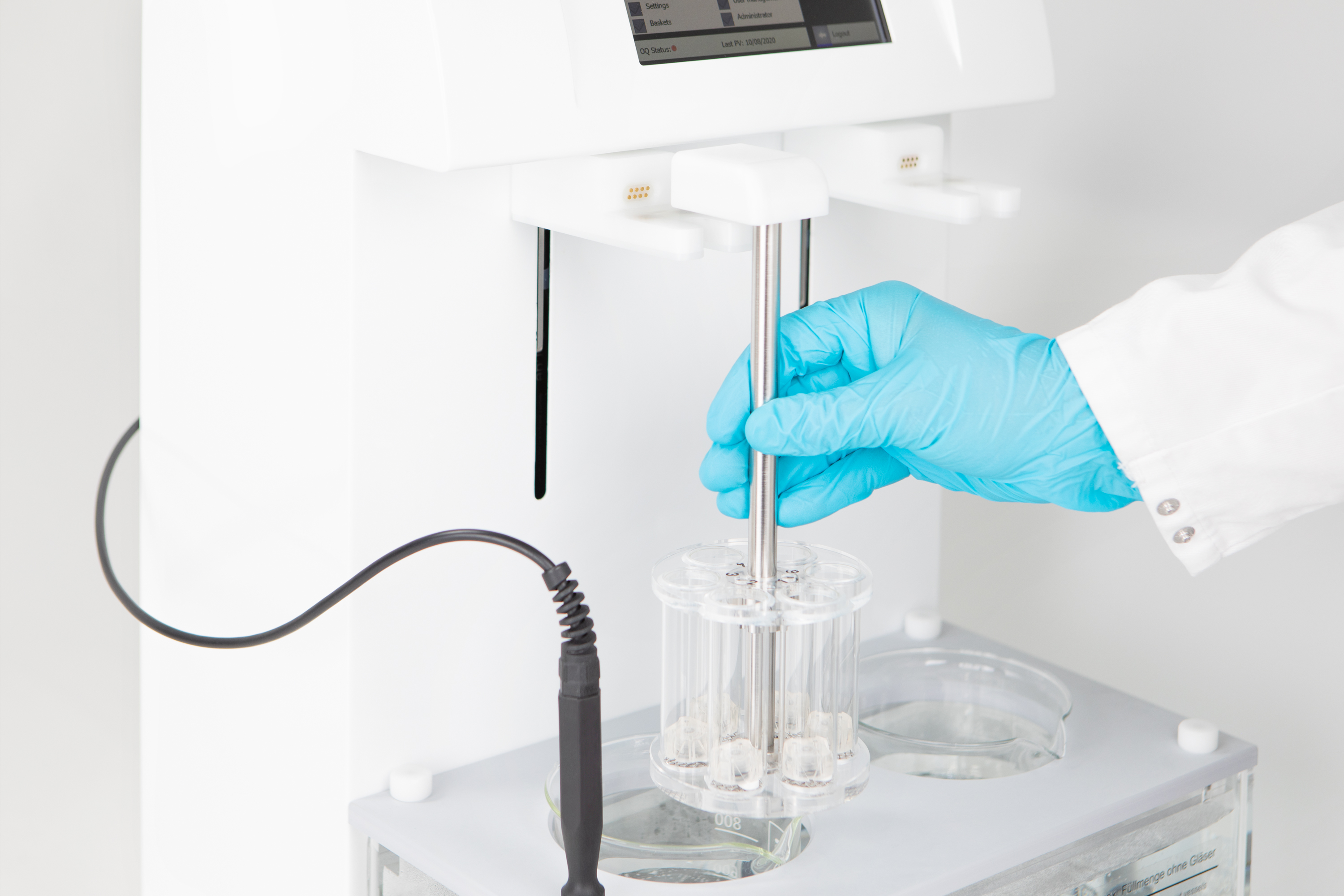

The ZT 730 series uses the AirBasket (type A with 6 tubes or type B with 3 larger tubes) and integrated sensors to automatically detect full disintegration time for each position. A 7‑inch touchscreen provides intuitive operation with storage for up to 200 products/methods and ~10,000 test results, including user management. Reliable water‑bath technology with external PT 100 sensor ensures stable temperatures (±0.2 °C). AirBasket electronics are sealed and dishwasher‑proof and can be used in acidic media.
Key Features
- 100% USP/EP/JP compliant
- Automatic disintegration time via cable‑free AirBasket
- 1 or 2 individually driven test stations (ZT 731 / ZT 732)
- 7" touch display with user/product/method memory
- Integrated flow‑through heater; external PT 100 temperature sensor
- Stroke height 55 ±2 mm; 30 ±1 strokes/min; 30–50 °C range
- AirBasket electronics sealed; dishwasher‑proof; usable in acidic media
- Type A (6 tubes) and Type B (3 large tubes) baskets available
Applications
For QC and development labs needing automatic, position‑wise disintegration time capture with precise temperature control and compendial compliance (USP/EP/JP). Ideal for routine release testing, investigations, and documented method execution with stored products/methods.
