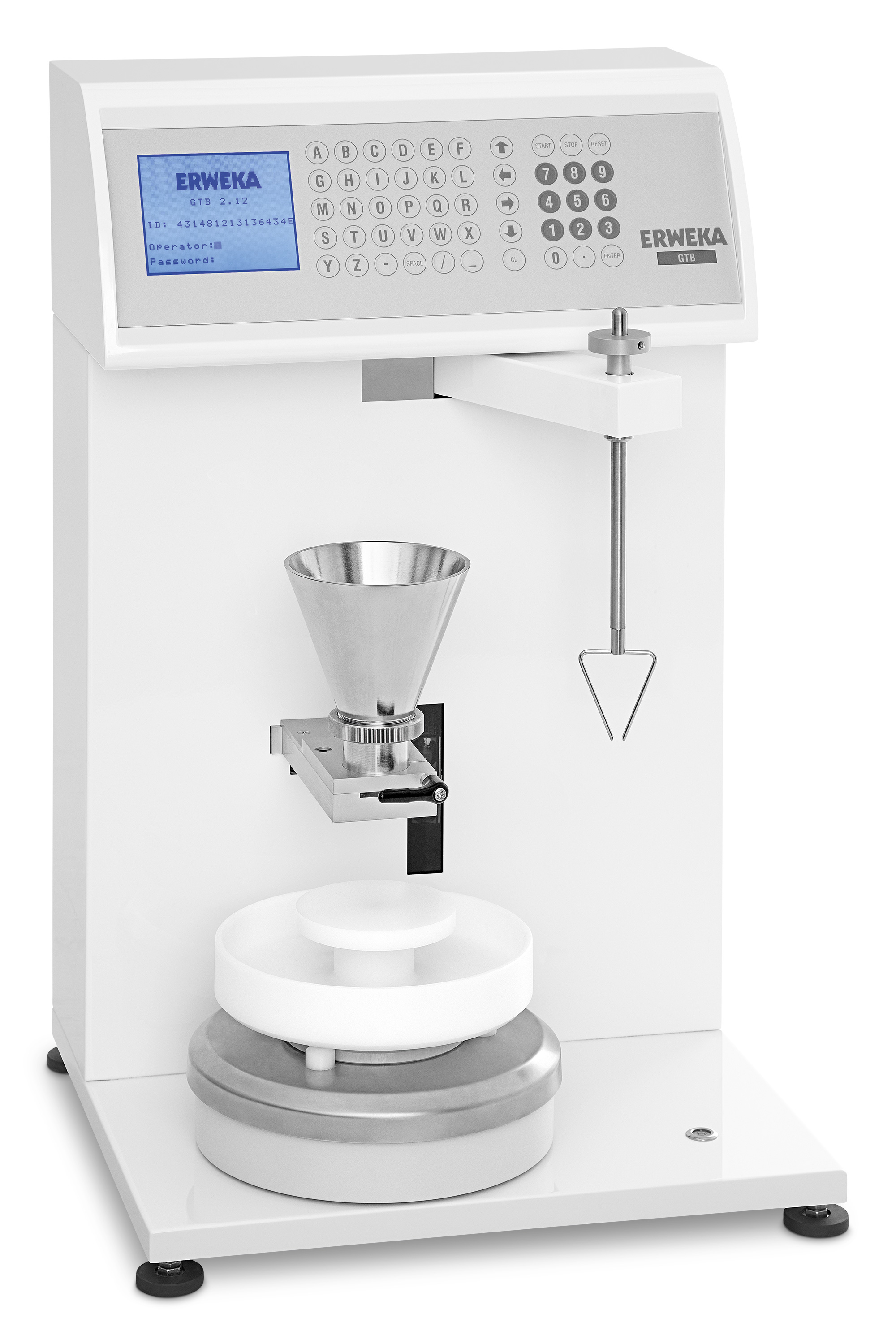

Granulate Flow Tester GT
Modular flow testers for powders and granulates with multiple EP‑compliant methods.
The GT series determines flow behavior using several methods. GTL covers entry‑level EP testing by weight and by volume with an LC display and simple keypad. GT adds a precision scale to measure stable weight during flow, supports time‑based and angle determination with graphical output, and printing. GTB extends capabilities with a laser‑based, automatic angle of repose per the Pfrengle method; an optional agitator with four speeds helps poorly flowing samples. Accessories such as alternative nozzles and funnels enable customer‑specific methods.
Key Features
- EP‑compliant methods (weight, volume; time; angle of repose)
- GTL: entry model with LC display and keypad
- GT: integrated precision scale with graphical output and printing
- GTB: automatic angle of repose with class 2 laser (Pfrengle)
- Optional agitator (4 speeds) for poorly flowing samples
- Interchangeable nozzles (10/15/25 mm; optional 6/8/11.3 mm) and funnels (480 ml; optional 100/200 ml)
- Interfaces: RS‑232C and USB for immediate result printing
Applications
For QC and development labs characterizing powder/granulate flowability per EP methods. Supports comparative flow studies by weight, volume and time, and automated angle of repose measurement to guide formulation, handling and process decisions.
